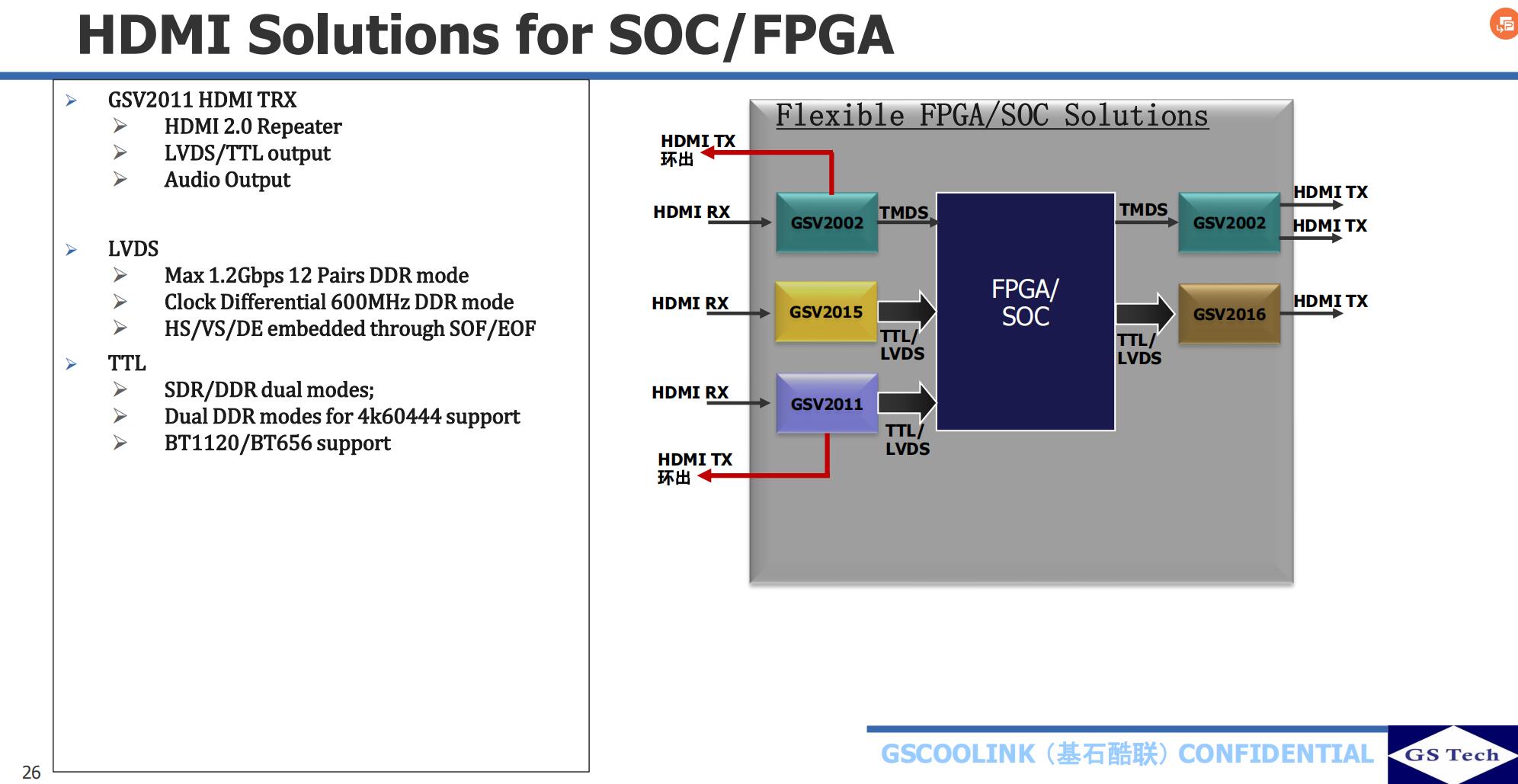

?GSV2011 HDMI TRX
?HDMI 2.0 Repeater
?LVDS/TTL output
?Audio Output
?LVDS
?Max 1.2Gbps 12 Pairs DDR mode
?Clock Differential 600MHz DDR mode
?HS/VS/DE embedded through SOF/EOF
?TTL
?SDR/DDR dual modes;
?Dual DDR modes for 4k60444 support
?BT1120/BT656 support

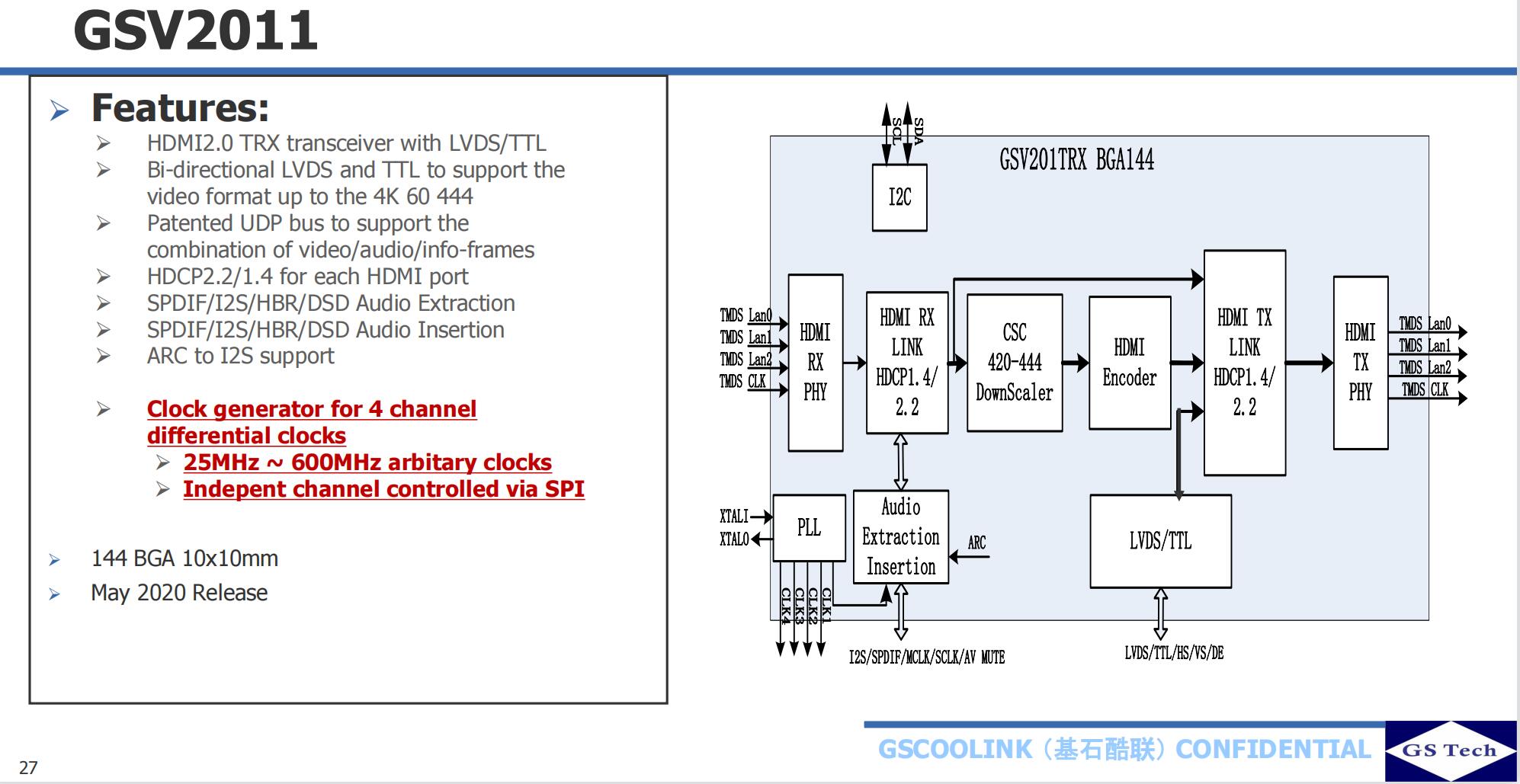

? Features:
?HDMI2.0 TRX transceiver with LVDS/TTL
?Bi-directional LVDS and TTL to support the
video format up to the 4K 60 444
?Patented UDP bus to support the
combination of video/audio/info-frames
?HDCP2.2/1.4 for each HDMI port
?SPDIF/I2S/HBR/DSD Audio Extraction
?SPDIF/I2S/HBR/DSD Audio Insertion
?ARC to I2S support
?Clock generator for 4 channel
differential clocks
? 25MHz ~ 600MHz arbitary clocks
? Indepent channel controlled via SPI
?144 BGA 10x10mm
?May 2020 Release
